Design features/設計功能

§ 4 different sizes with max. dynamic axial loads from

ALS 10: 12.5 kN

ALS 25: 25 kN

ALS 50: 50 kN

ALS 100: 100 kN

§ Self-locking trapezoidal screw

§ Attachment options for any flange connection capable gear  motor in solid or hollow shaft design

§ Long-term lubrication by high-quality grease and  encapsulated design

§ Special screw diameter and pitches possible

§ Comprehensive accessories range

§ Possible usage according to directive 2014/34/EU (ATEX)

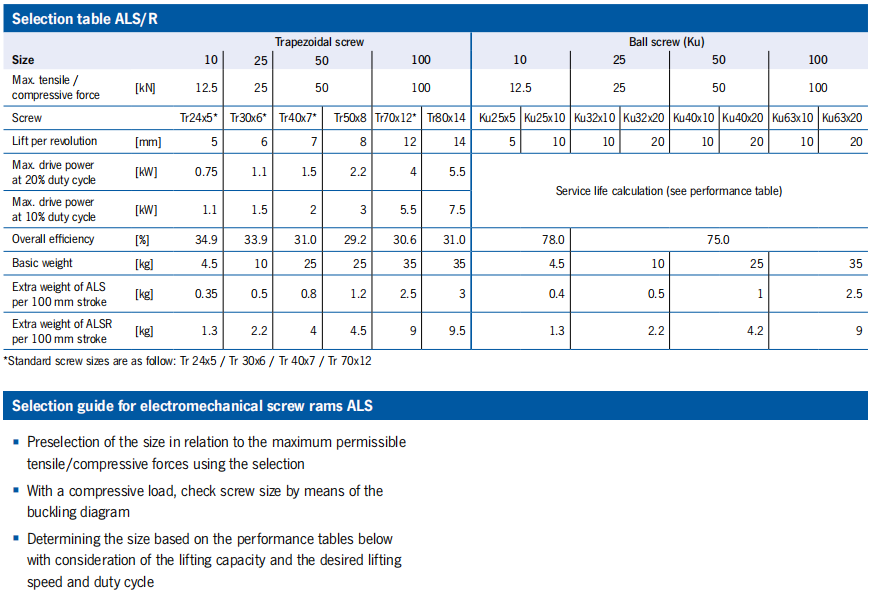

ALS/R Selection table

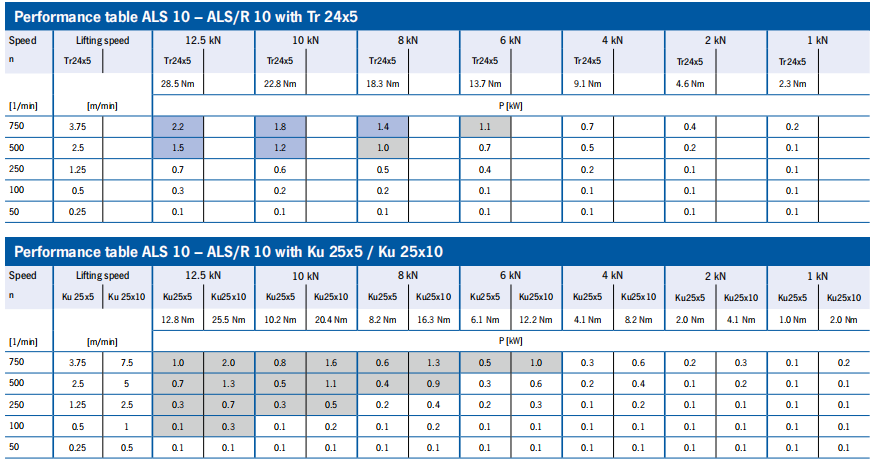

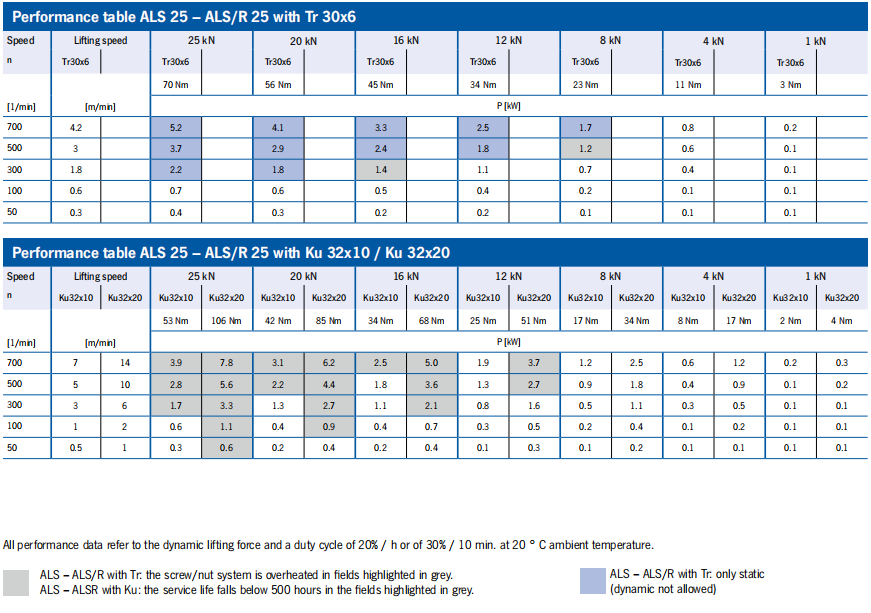

ALS/R Performance data tables ALS 10/25

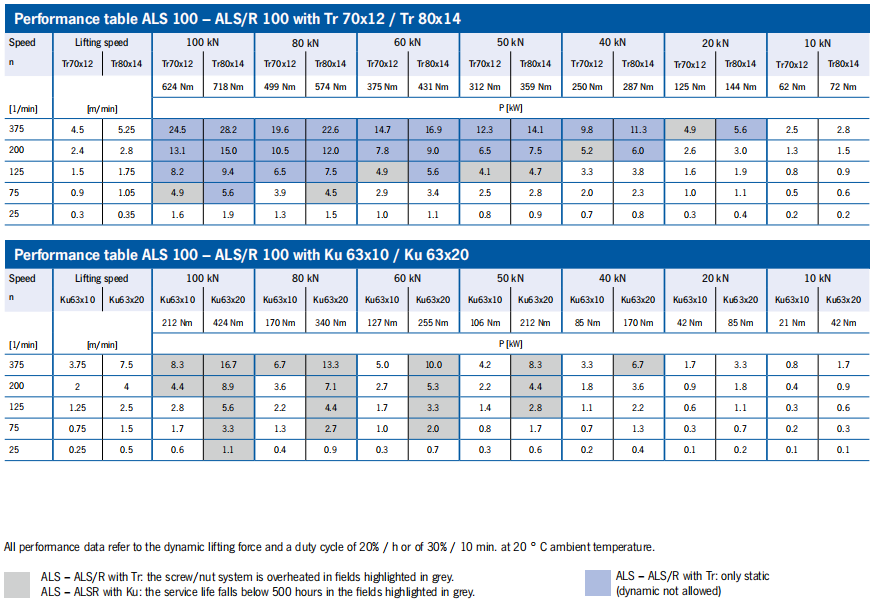

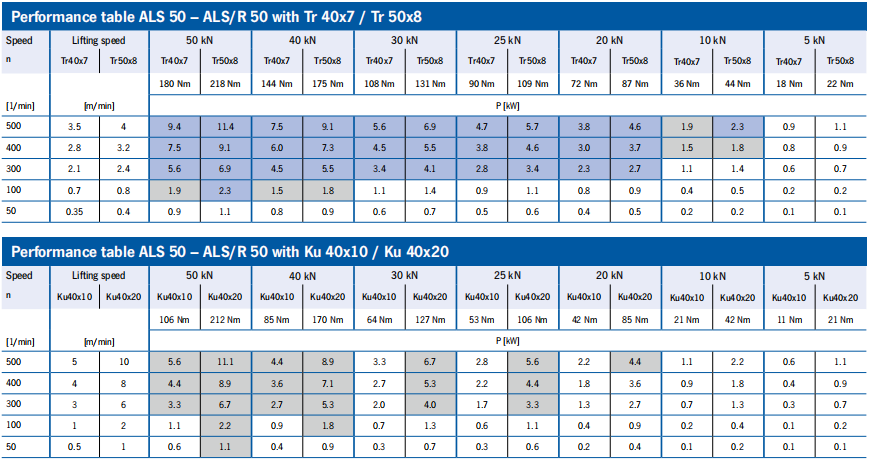

ALS/R Performance data tables ALS 50/100

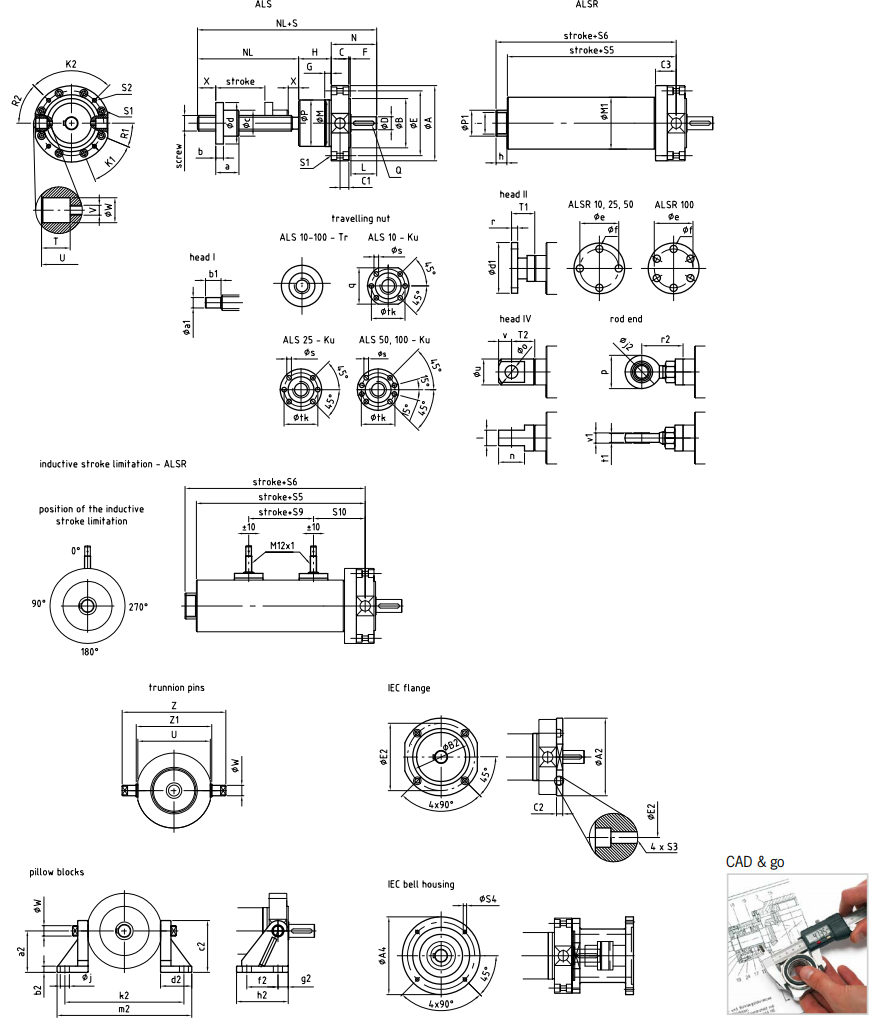

ALS/R Technical drawings

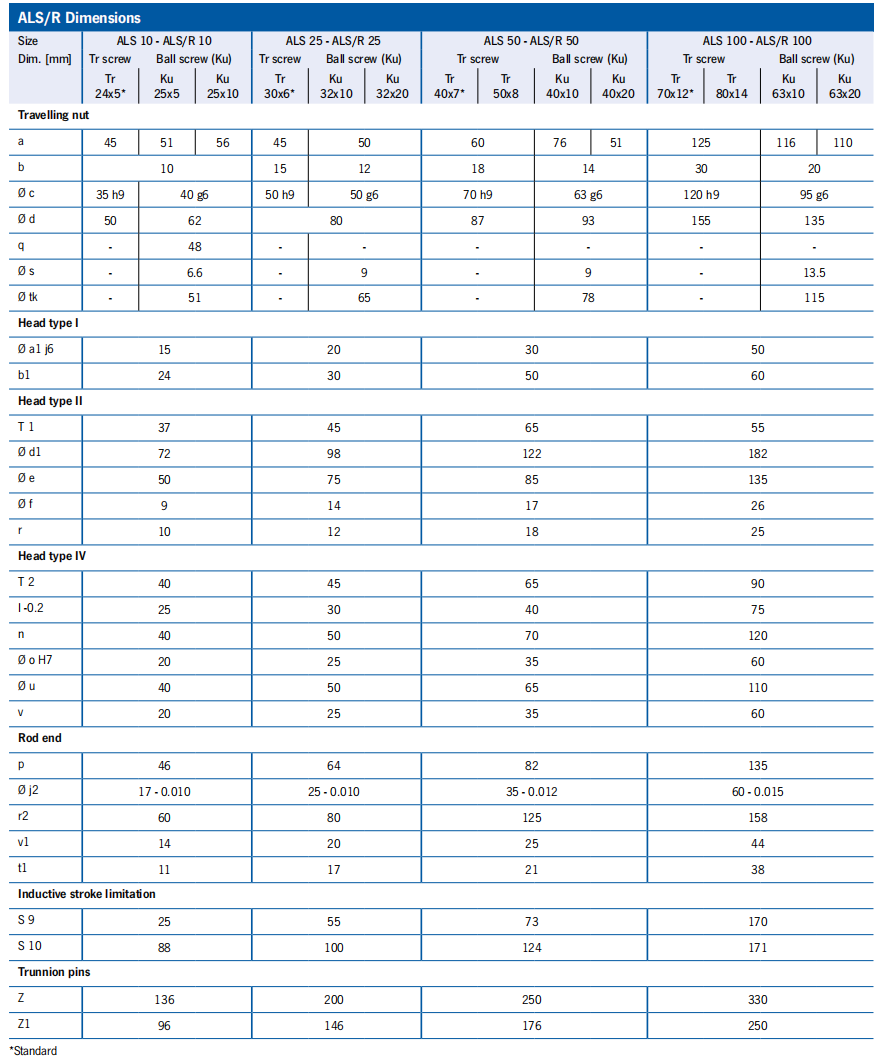

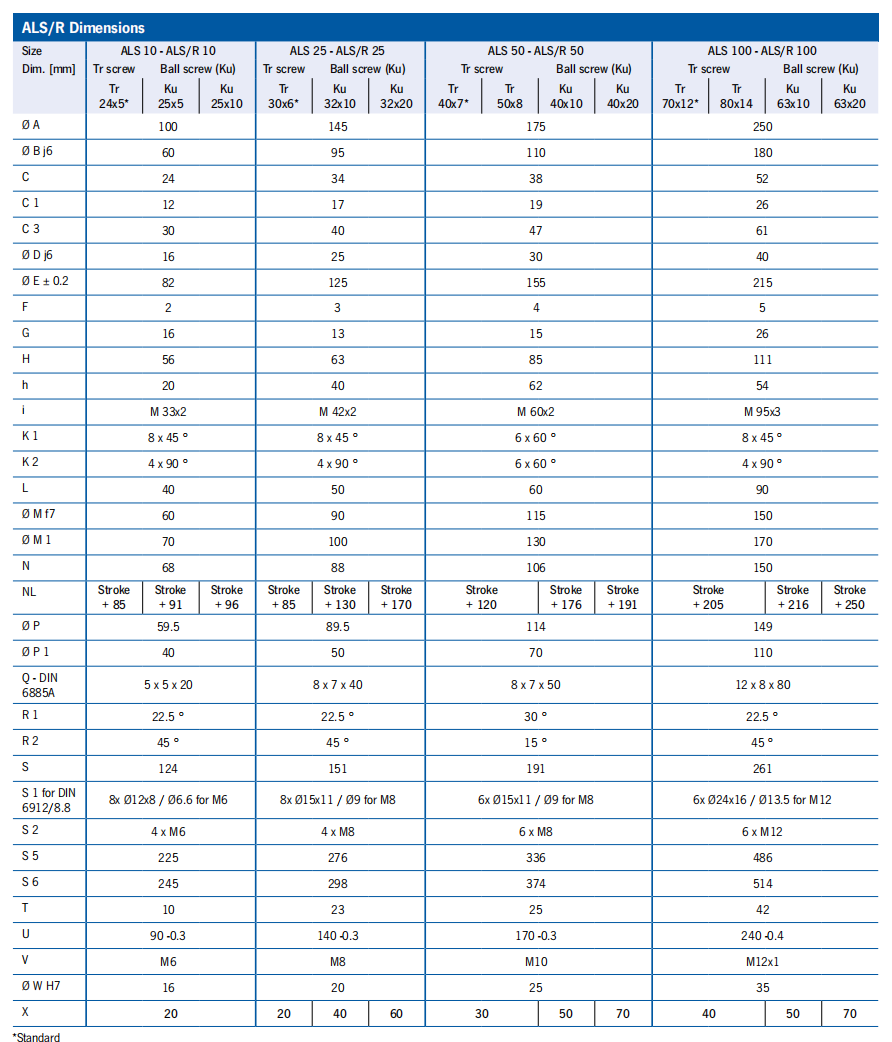

ALS/R Dimensions

ALS/R Dimensions

ALS/R Dimensions

ALS/R Diagrams

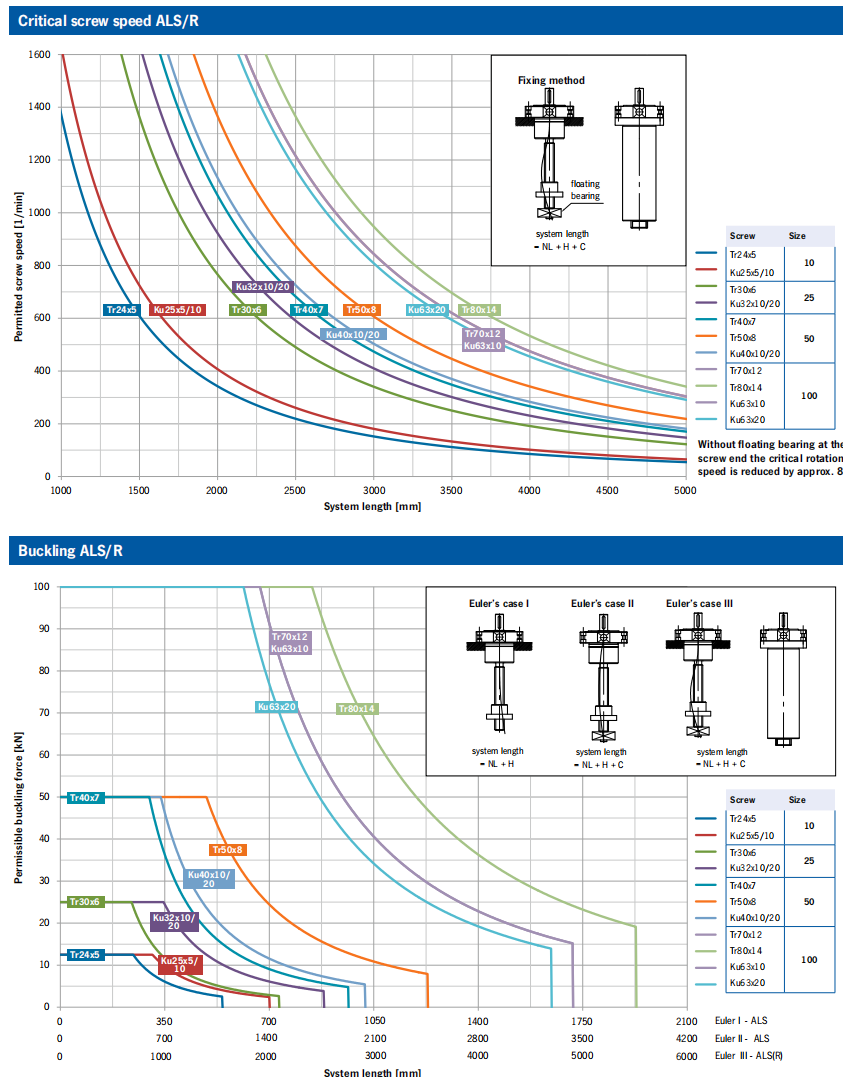

Critical screw speed ALS/R

ALS/R Order code
